Smartrackerz is a propulsive leader and acknowledged pioneer in providing the GPS based fleet management products and services. Smartrackerz aspires to provide the opportunity for every fleet owner in India so as to enjoy prosperity, peace, confidence when it comes to there vehicle's location and security.

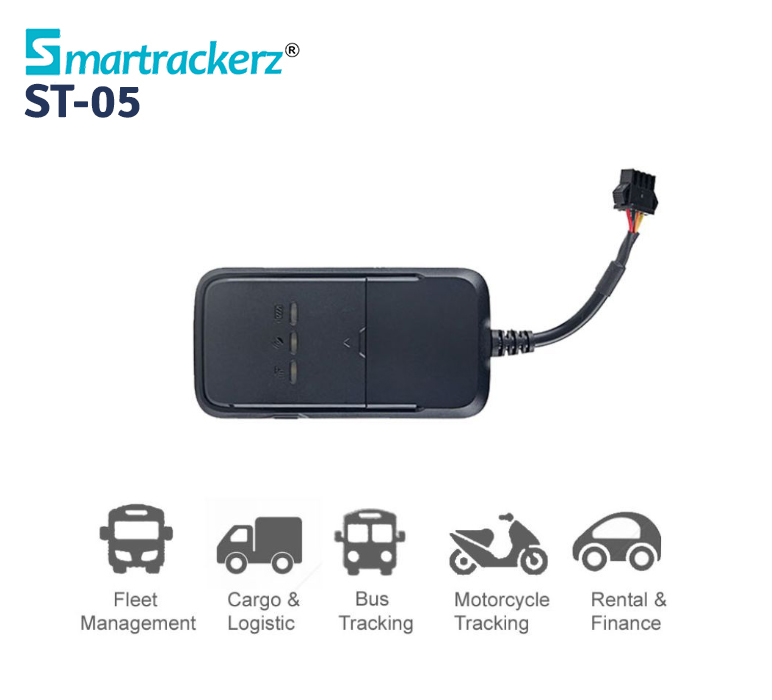

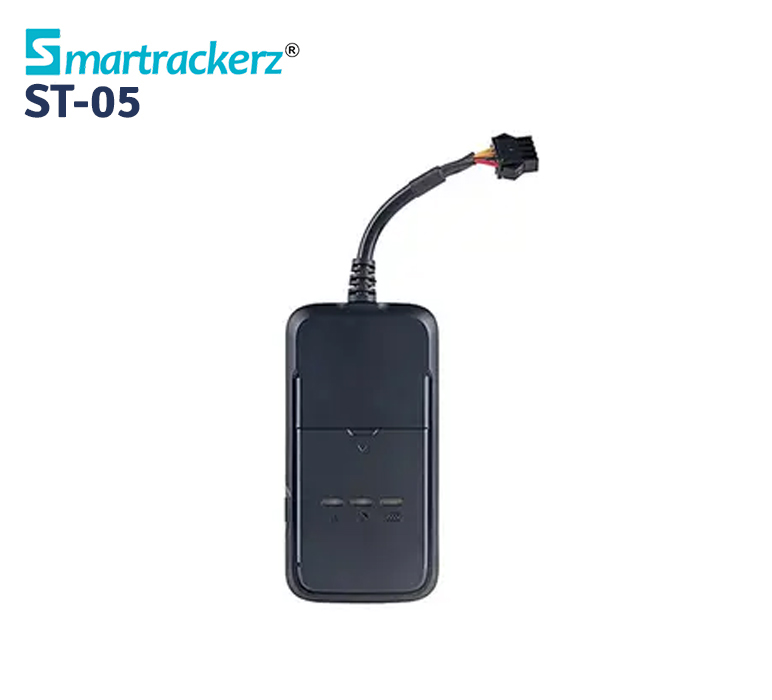

Smartrackerz-ST05 Vehicle GPS Tracker with Real Time Online Tracking Vehicle GPS Tracker is a practical and easy-to-use GPS tracker specially designed for vehicle tracking. It combines GSM+GPRS+GPS wireless communication technology, with AGPS function the device can easily achieve extreme fast positioning (Cold start < 10s).
REMOTELY CUT OFF FUEL/POWER
Compel the vehicle to stop by breaking off the fuel connectionACC DETECTION FOR IGNITION STATUS
Be aware of the ignition status whenever you needCONFIGURABLE TRACKING MODES
Location uploded following fixed distance, time interval, preset corneringCONFIGURE ALERTS FOR OVER-SPEEDING
Send instant email/SMSto notify vehicle`s speedingGPS+AGPS+LBS POSITIONING
Allow the location to be pinpointed accurately and rapidlyEASY INSTALLATION
Plug-and-track, easy to swap between vehiclesMULTIPLE ALARMS
Instant alert for vibration, overspeed, power off, geo-fenceTRACKED BY: SMS, APP, WEB
Reports iocation in real time through different interfaces| GSM Specification | |
| GPS Chipset | MTK high sensitivity chip |
| Frequency | L1,1575.42MHz C/A code |
| GPS channel | 66 |
| Location accuracy | 10 meters |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤32sec |
| GPS Specification | |
| GSM frequency | 850/900/1800/1900 MHz |
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | <10 meters |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| Functional Specification | |
| Battery | 400mAh/3.7V Li-Polymer battery |
| Working voltage/current | 9-36VDC/45mA(12VDC), 15mA(24VDC) |
| Operating temperature | 70℃ |

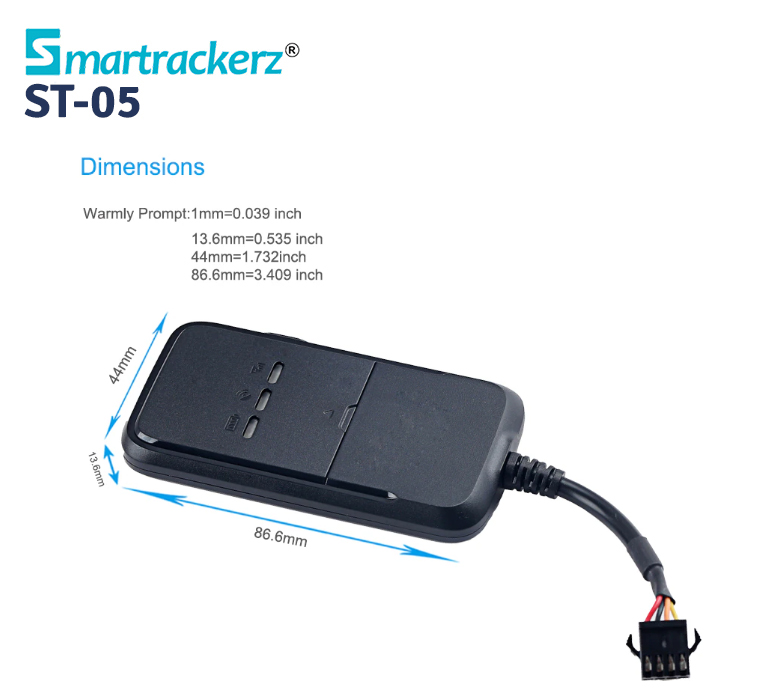

| Dimension | 86.6(L)*44.0(W)*13.6(H)mm |
| Weight | 51g |
| Standby time | 70 hours |
| Working time | 6 hours |
